Exploring Single Extruder, Barrel, and Screw in 3D Printing

Aug 07,2023

Are you fascinated by the magic of 3D printing? You might have heard about the "single extruder, barrel, and screw" system, which is the heart of many 3D printers. Let's dive into the world of 3D printing technology and understand how this trio works together!

Understanding Single Extruder, Barrel, and Screw

In 3D printing, a single extruder, barrel, and screw play a crucial role in the process of converting raw material into a three-dimensional object. The extruder is like the artist's brush, and the barrel and screw are like the paint palette. They work hand in hand to create intricate designs layer by layer.

The Single Extruder: The Artist's Brush

The single extruder is like the artist's brush, responsible for laying down the material. It takes in the raw filament, typically made of plastic, and heats it until it becomes molten. The molten material is then precisely deposited onto the build platform, following the instructions from the 3D design file.

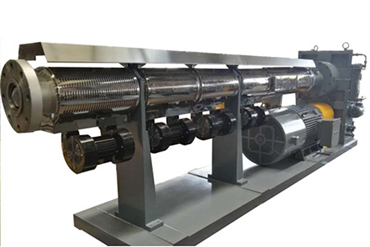

Single Screw Extruder

The Barrel and Screw: The Paint Palette

The barrel and screw are like the paint palette of the 3D printer. The raw filament is fed into the barrel, where the screw pushes it forward. The screw's rotating motion helps to melt and homogenize the material before it's pushed through the nozzle. This ensures a smooth and consistent flow of material, essential for creating high-quality prints.

How the Trio Works Together

The single extruder, barrel, and screw work together harmoniously. The filament enters the barrel, where the screw rotates, pushing the material forward while heating and melting it. As the molten material moves through the nozzle, it can be precisely controlled to create the desired shape. The printer's movements and the flow of material are coordinated, resulting in the gradual buildup of layers until the final object takes form.

In conclusion, the single extruder, barrel, and screw are fundamental components of 3D printing technology. They work together to bring your digital designs to life, creating tangible objects layer by layer. Understanding how these components work will help you appreciate the magic behind this revolutionary technology and its endless possibilities. So, the next time you see a 3D printer in action, you'll know the crucial role played by the single extruder, barrel, and screw in shaping our future.
