How should one select the molding equipment when generating PP water supply pipes?

How should one select the molding equipment when generating PP water supply pipes?

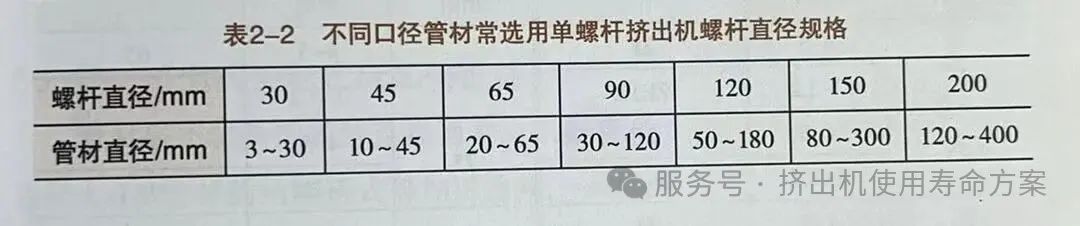

The extruders used for the production of PP water pipes are usually single-screw extruders. The size of the extruder is generally selected based on the diameter of the pipe to be produced. Refer to Table 2-2 for selection. The screw form is preferably a stepped deformation screw, with a screw length-to-diameter ratio of generally 25 to 30 and a compression ratio of 2.5 to 4.

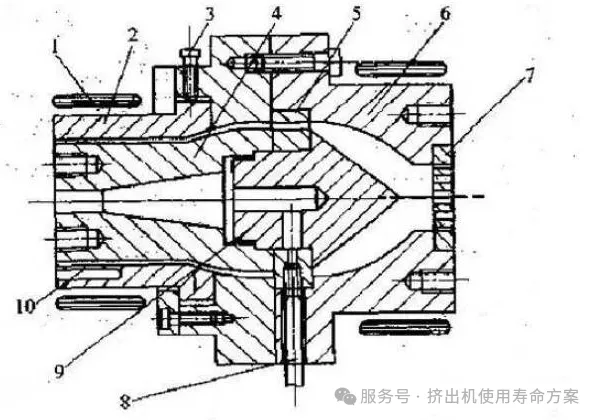

Straight-through die heads are mostly used for pipe forming. The straight part of the mandrel is (2~5)D in length (D represents the pipe diameter). When the pipe diameter is small, a smaller value should be selected; when the diameter is large, a larger value is preferred. Vacuum sizing is commonly used for sizing, but internal pressure inflation sizing can also be adopted. The inner diameter of the sizing die is D/[1-(0.27%~0.47%)]
